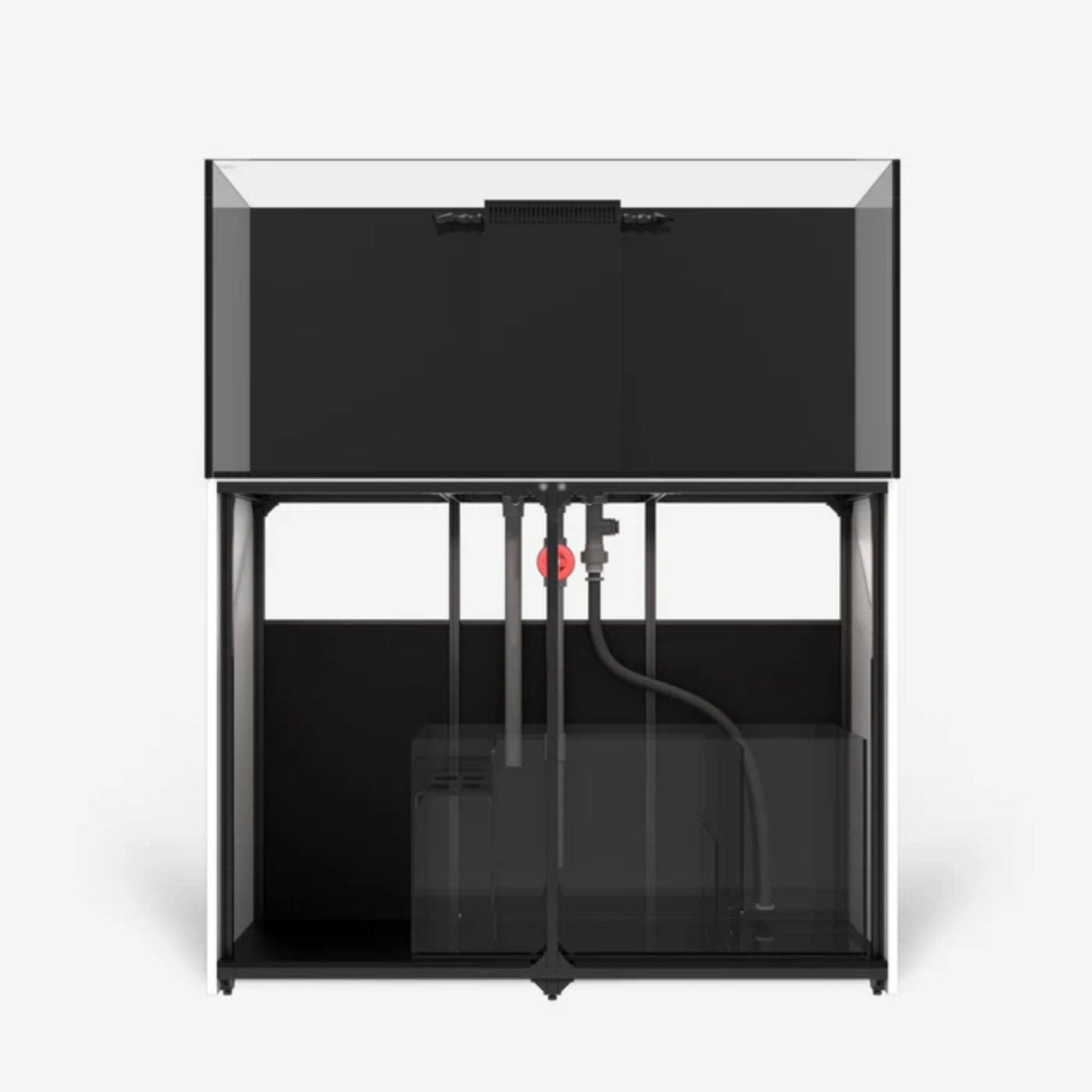

MARINE X 110.4
Waterbox Aquariums® has redesigned our popular MARINE series from the ground up and introduced the MARINE X. New features include aluminum cabinet frame, glass overflow with removable weir teeth, dual returns and sump filtration system. The all new MARINE X is packed full of features any reefer will love.
More Flow, Less Maintenance.
The MARINE X 60.2, 90.3 and 110.4 models come standard with dual returns and our newly designed removable weir teeth system, which allows for easy maintenance and cleaning.
***Please Check Availability Before Ordering***
Technical Specifications
| PRODUCT MODEL | MARINE X 60.2 GEN2 | MARINE X 90.3 GEN2 | MARINE X 110.4 GEN2 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,400mm/55.6" | 1,450mm/57.1" | 1,450mm/57.1" |
| Total Volume with RO | 211 L/55.6 gals | 342 L/90.2 gals | 418 L/110.5 gals | |
| Display Tank |
Tank Dimensions | 600 x 500 x 500mm | 900 x 500 x 550mm | 1,200 x 500 x 550mm |
| 23.6" × 19.7" × 19.7" | 35.4" × 19.7" × 21.7" | 47.2" × 19.7" × 21.7" | ||
| Glass Thickness | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 510 x 410 x 380mm | 800 x 410 x 380mm | |
| 20.1" × 16.1" × 15" | 31.5" × 16.1 × 15" | |||
| Sump Volume | 74 L/19.6 gals | 117 L/31 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Skimmer Chamber (Int. Dimensions) |
308 x 258mm | 388 x 343mm | ||
| 12.1" × 10.2" | 15.3" × 13.5" | |||
| Pump Chamber (Int. Dimensions) |
140 x 210mm | 210 x 150mm | ||
| 5.5" × 8.3" | 8.3" × 5.9" | |||
| RO Reservoir (Int. Dimensions) |
140 x 183 x 359mm | 210 x 243 x 359mm | ||
| 5.5" × 7.2" × 14.1" | 8.3" × 9.6" × 14.1" | |||
| RO Volume | 9.2 L/2.4 gals | 18.3 L/4.8 gals | ||
| Plumbing | Main Drain | DN20 (25mm/1") | DN25 (32mm/1-1/4") | |
| Emergency Overflow | DN20 (25mm/1") | DN25 (32mm/1-1/4") | ||
| Pump Return | DN20 (25mm/1") | DN20 (25mm/1") | ||
| Nozzle(s) | 2 x DN15 (20mm/3/4") | |||
| Pre-assembled Piping with Emergency Overflow | ||||
| High Precision Flow Valve | ||||
| Dual Return Directional Nozzles | 2 x DN15 (20mm/3/4") | |||
| Filtration | 225 Micron Fileter Socks | 1 x 105mm/4" MESH | 2 x 105mm/4" MESH | |
| Filter Sock Silencers | 1 x 105mm/4" | 2 x 105mm/4" | ||
| Noise-reducing Overflow Lid | x 1 | x 2 | ||
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Sump Compartment (Int. Dimensions) |
524 x 468 x 813mm | 824 x 448 x 813mm | 1,124 x 440 x 813mm | |
| 20.6" × 18.4" × 32" | 32.4" × 17.6" × 32" | 44.3" × 16.5" × 32" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm PVC Laminated Wood Particle Board | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
| SUS304 Hinges | ||||
| Leveling Feet | ||||
| Optional Accessories |
Manifold Kit (Optional) | Manifold 15 (Single outlet) |
Manifold 15 (Single outlet) Manifold 15D (Double outlet) |
|
| Mesh Aquarium Lid (Optional) | MT MX 60.2 | MT MX 90.3 | MT MX 110.4 | |
